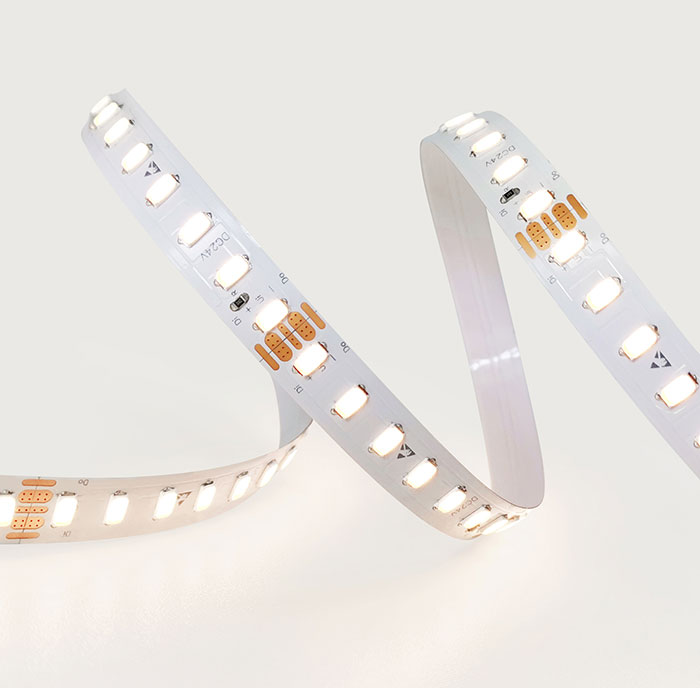

SMD5630 ∙ 112 LEDs ∙ 19.2W

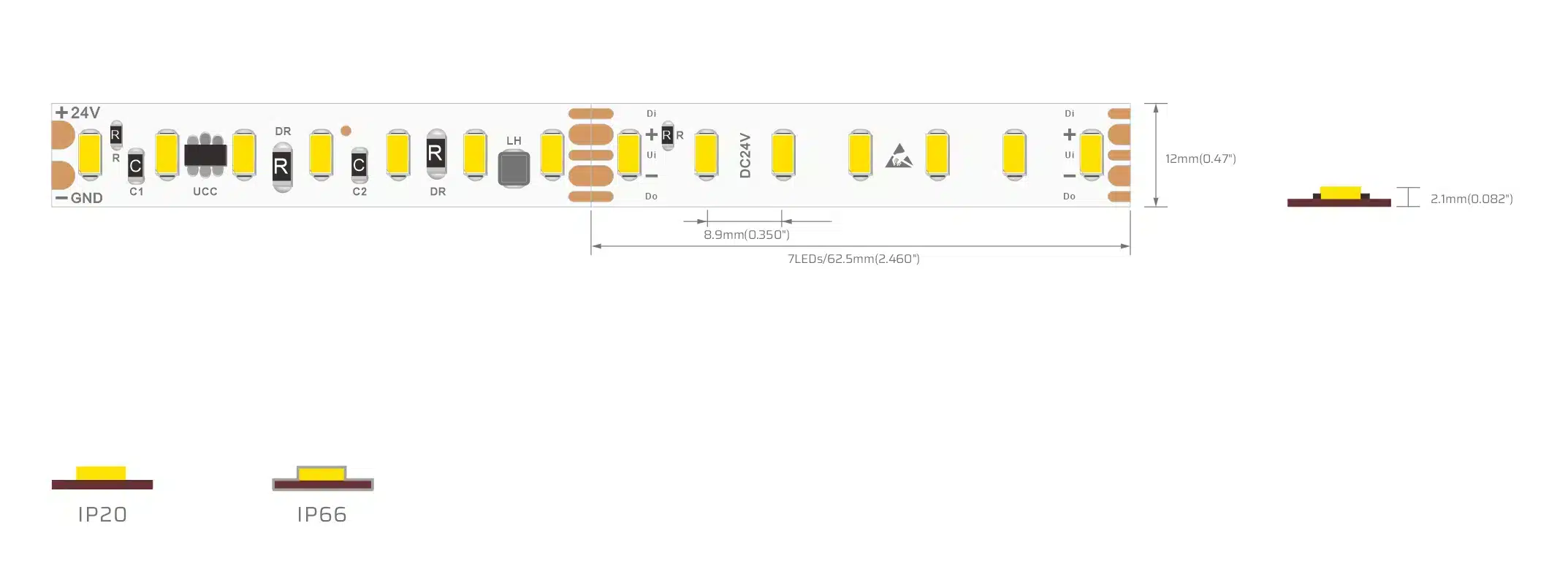

The Special High Lumen, High Light Efficacy, Ultra-Long LED Strip delivers outstanding performance with exceptional efficiency. At 19.2W per meter, it achieves a 15-meter single-end 24V power supply run with no visible voltage drop. this LED strip reaches up to 140lm/W, combining high power, high luminous flux, and stable long-run performance. It’s the ideal choice for large-scale lighting projects requiring brilliant brightness, uniform illumination, and ultra-long continuous runs. Dimension ( mm ) : 5000 * 12 * 2.1 Voltage : DC 24V Wattage : 19.2 W/meter Chip Density : 112 LEDs/ meter , 8.9 mm Step LEDs : 7 LEDs Step Length : 62.5 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 2688 lm/m @ 2800K Lumen / Watt ( max. ) : 142lm/W @ 2800K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% SDCM : ≤ 5 Step 1Bin PCB Width : ≥ 12 mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
