SMD2835 ∙ 960 LEDs ∙ 45W

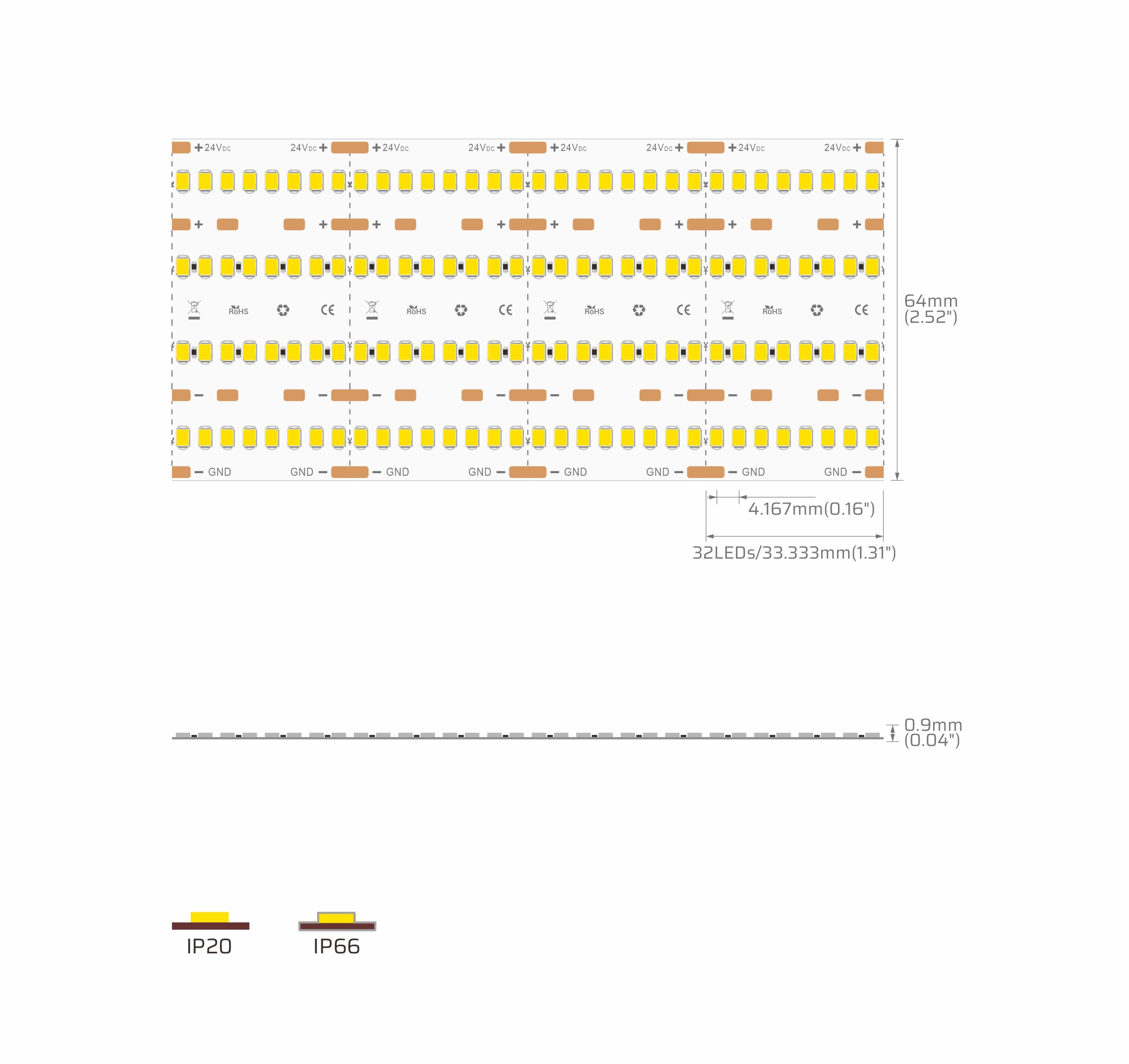

The ​Multi-Line Four-Row LED Strip​ is a robust, 64mm wide, high-density solution engineered for high-standard commercial and architectural projects. Its innovative design delivers two key advantages. The ​extra-wide FPCB ensures superior thermal management, dispersing heat evenly to significantly reduce light degradation and effectively extend the product’s lifespan, resulting in lower maintenance needs and costs. Four-row LED chip layout delivers exceptional light quality. It illuminates a larger area with exceptionally uniform and smooth output, ideal for spaces demanding high-quality ambient lighting. Utilising highly efficient LEDs, this strip provides excellent brightness with low power consumption, offering energy savings and environmental benefits. Dimension ( mm ) : 5000 * 64 * 0.9 Voltage : DC 24V Wattage : 15 , 30 , 45 W/meter Chip Density : 960 LEDs/ meter , 4.167 mm Step LEDs : 32 LEDs Step Length : 33.333 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 6301 lm/m @ 45W @ 4000K Lumen / Watt ( max. ) : 140lm/W @ 458W @ 4000K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% SDCM : ≤3 Step 1Bin PCB Width : ≥ 64 mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
