SMD2835 ∙ 480 LEDs∙ 36W

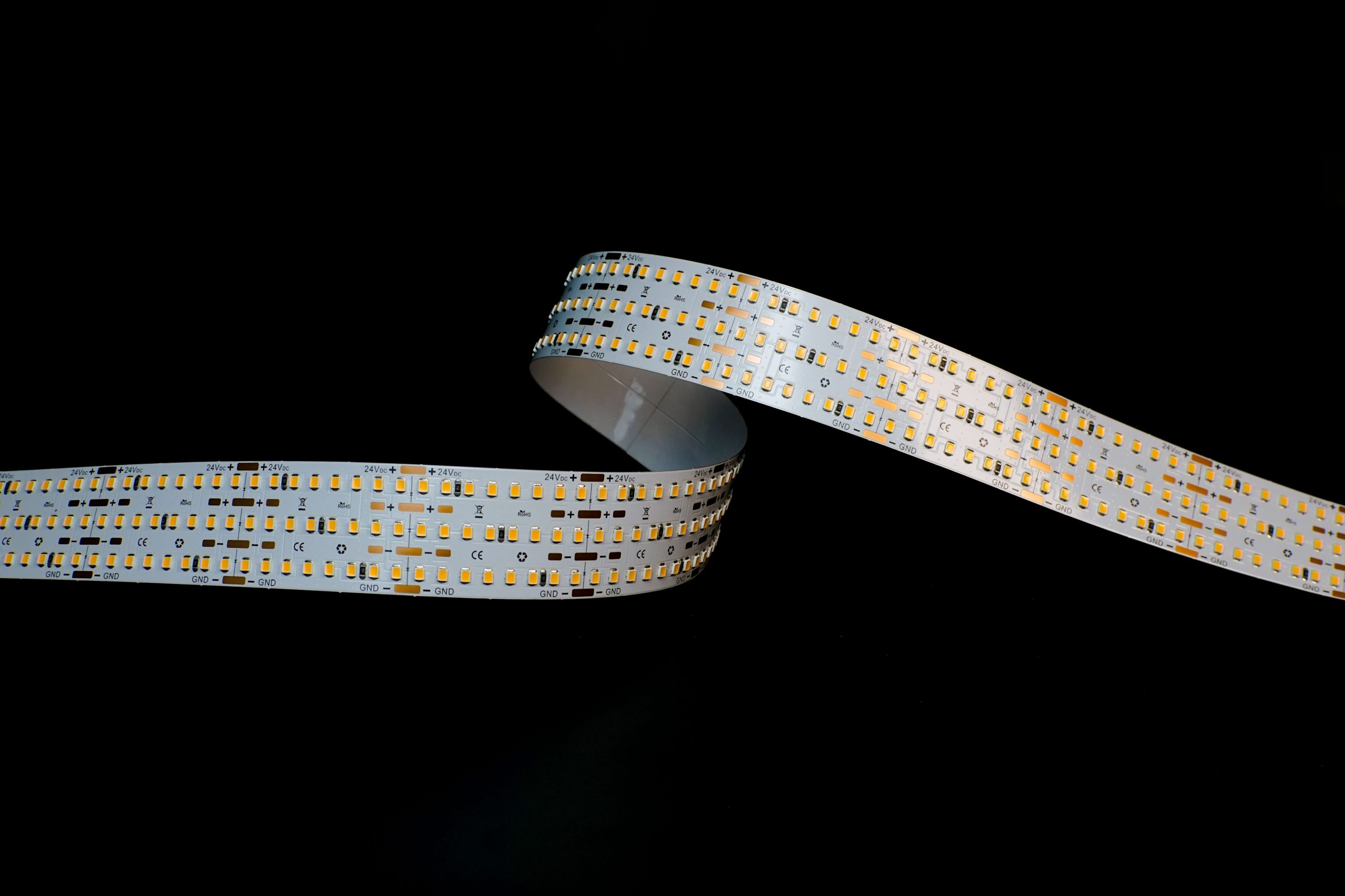

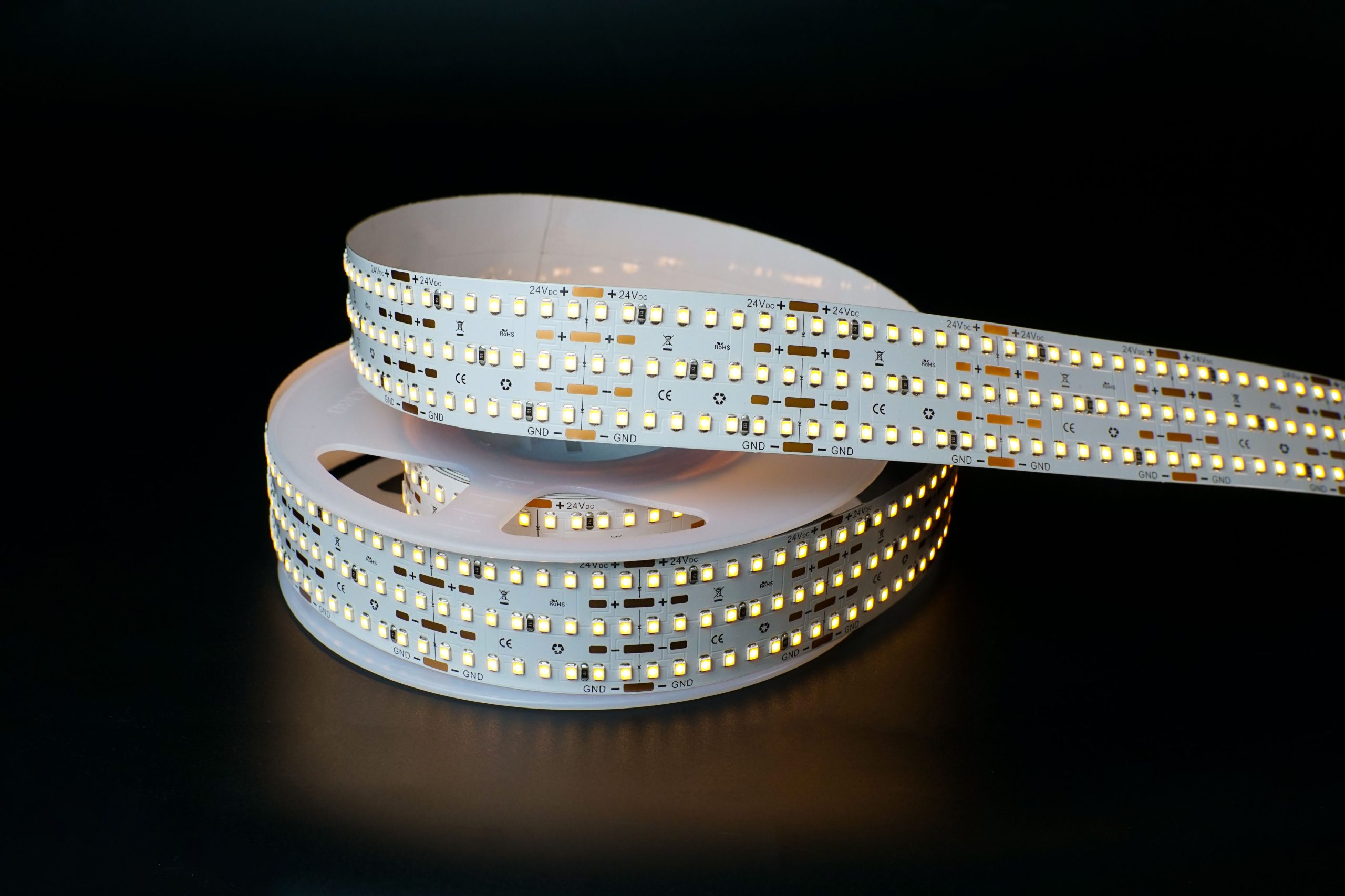

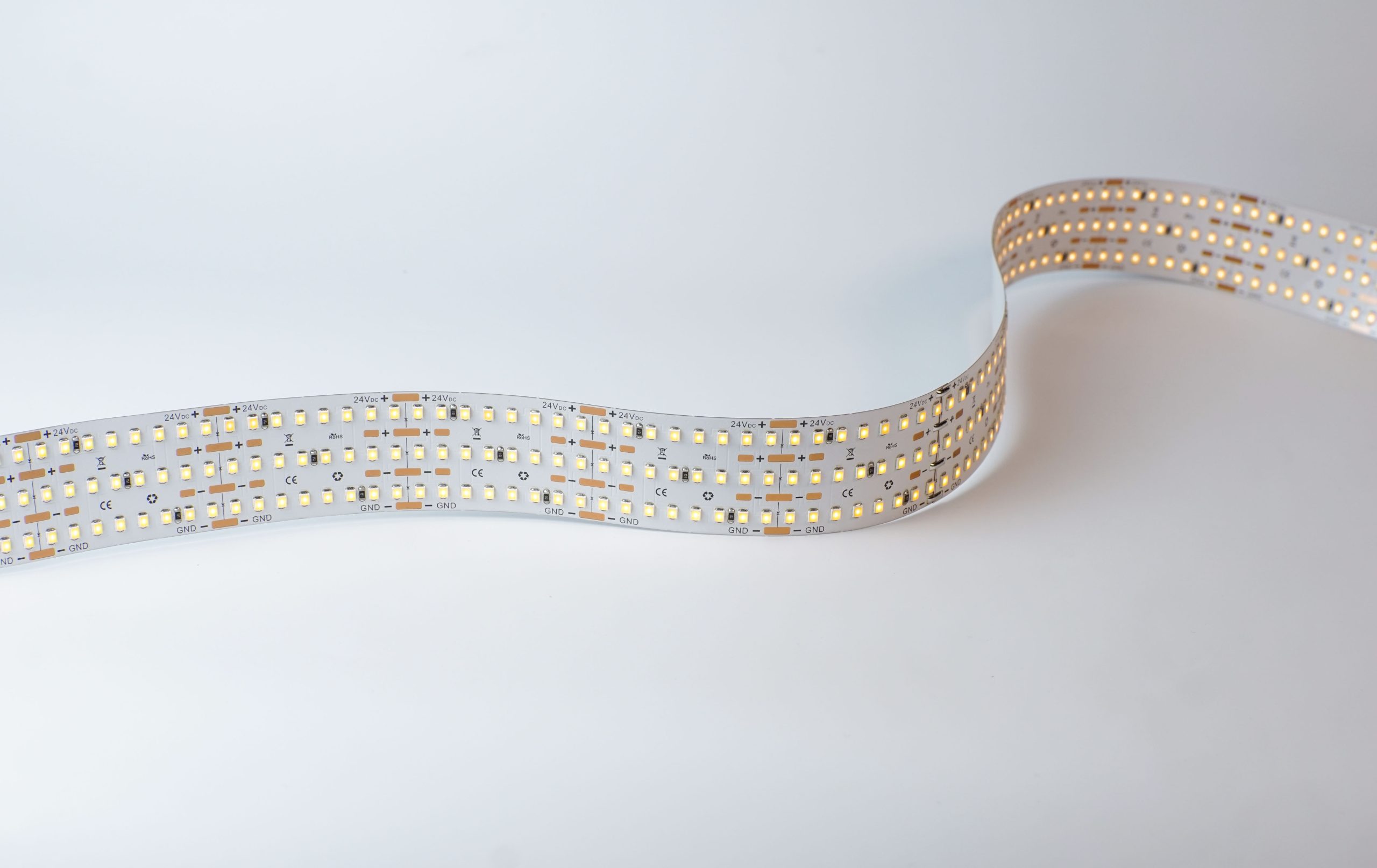

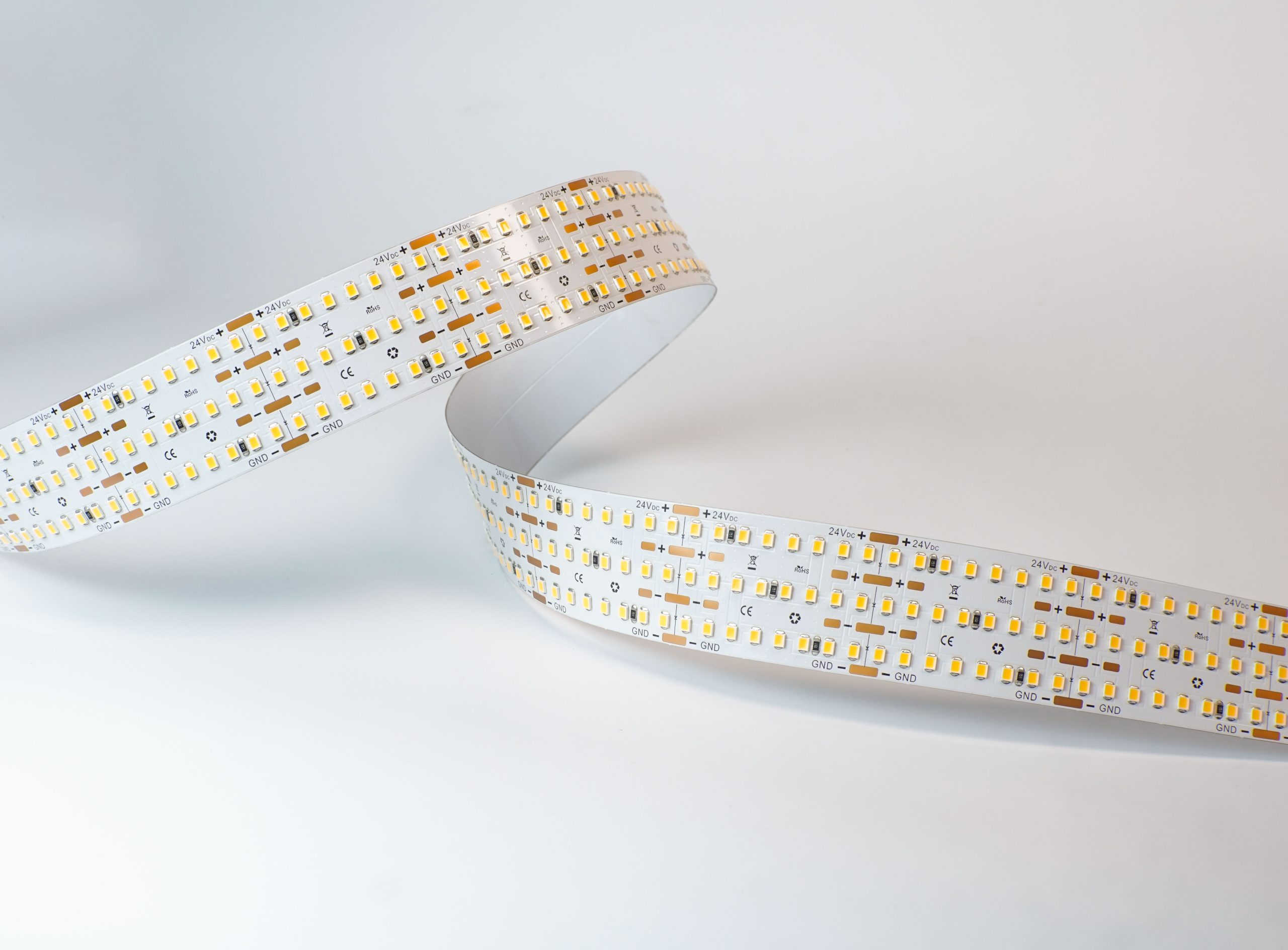

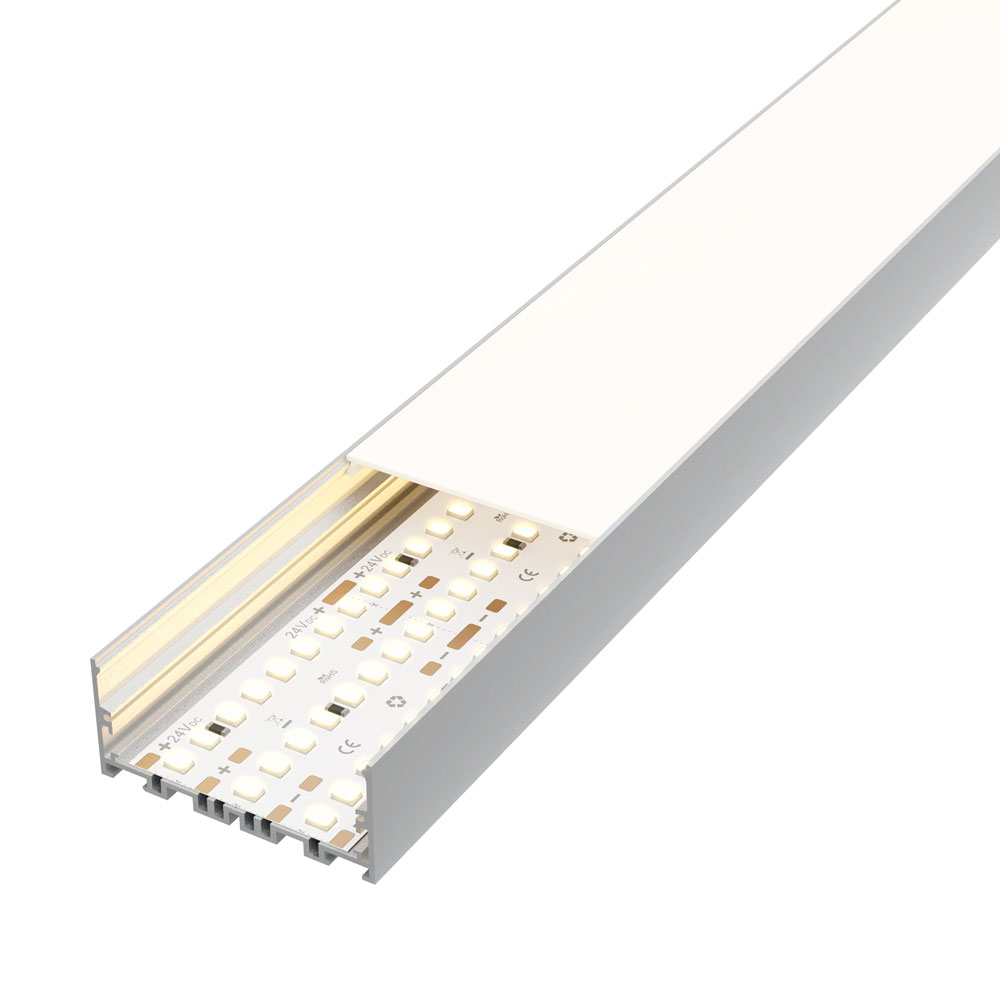

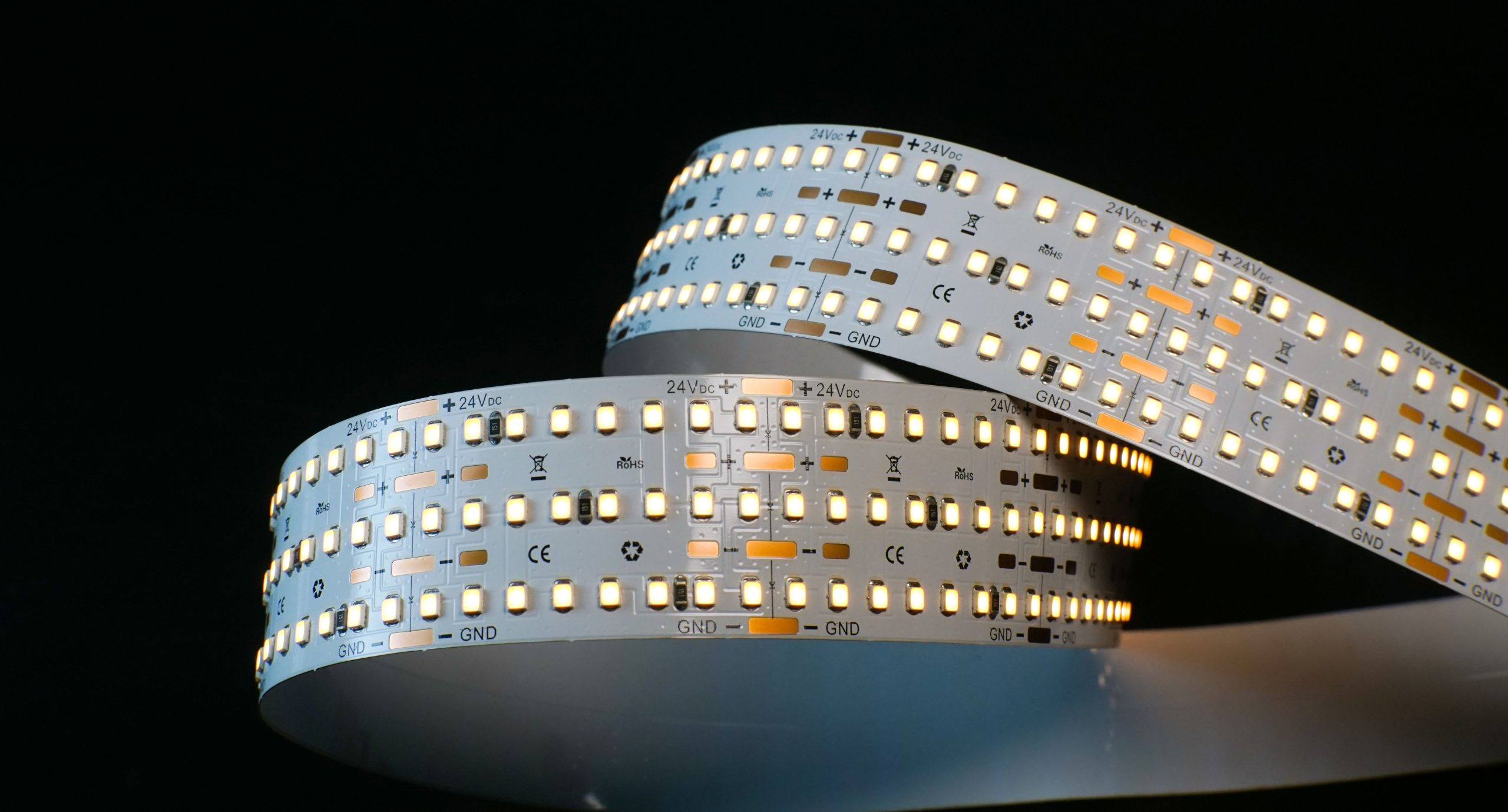

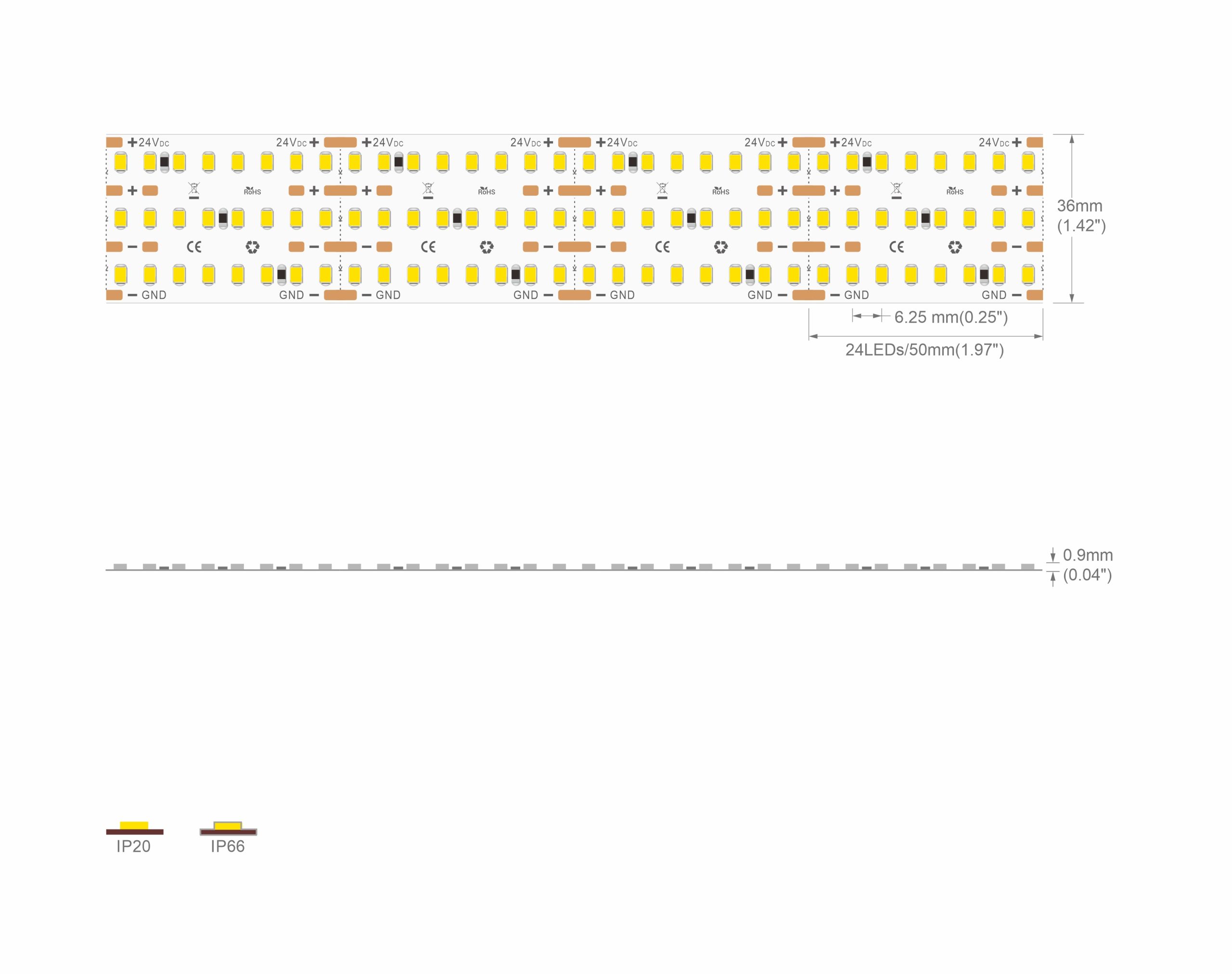

This Large width LED light strip features a high-density 3-row 2835 LED design with a 36mm wide FPC, delivering excellent luminous uniformity and high brightness output. It is specifically designed to pair with large-sized aluminium profiles, ensuring efficient heat dissipation and soft, even lighting effects. Applications: retail displays, hospitality environments, hotel decor, office spaces, exhibition centres, and artistic venues. Dimension ( mm ) : 5000 * 36 * 0.9 Voltage : DC 24V Wattage : 12 , 24 ,36 W/meter Chip Density : 480 LEDs/ meter , 6.25 mm Step LEDs : 24 LEDs Step Length : 50 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 4875 lm/m @ 36W @ 4000K Lumen / Watt ( max. ) : 135lm/W @ 36W @ 4000K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% SDCM : ≤ 3 Step 1Bin PCB Width : ≥ 36 mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
