SMD2835 ∙ 480 LED ∙ 28.8W

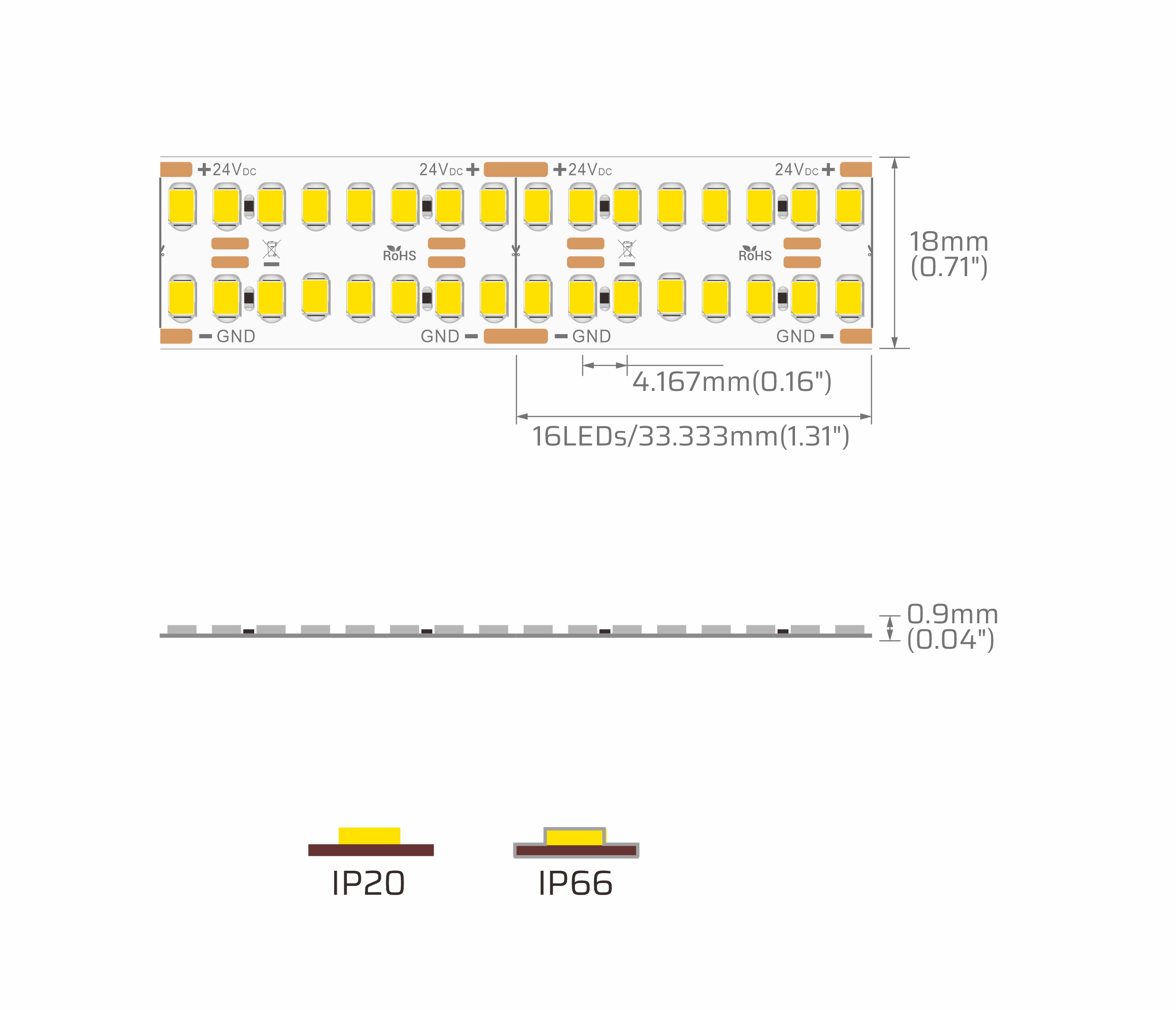

This Large width “Multi-Line Two-Row”LED light strip features a high-density 2-row 2835 LED design with an 18mm wide FPC, delivering excellent luminous uniformity and high brightness output. The innovative “Multi-Line Two-Row” design is specifically engineered to pair with large-sized aluminium profiles, ensuring efficient heat dissipation and soft, even lighting effects for a wide range of applications. Applications include: retail displays, hospitality environments, hotel decor, office spaces, exhibition centres, and artistic venues. Dimension ( mm ) : 5000 * 18 * 0.9 Voltage : DC 24V Wattage : 9.6 , 19.2 , 28.8 W/meter Chip Density : 480 LEDs/ meter , 4.167 mm Step LEDs : 16 LEDs Step Length : 33.333 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 4113 lm/m @ 28.8W @ 4000K Lumen / Watt ( max. ) : 143lm/W @ 28.8W @ 4000K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% SDCM : ≤3 Step 1Bin PCB Width : ≥ 18mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
