SMD2220 ∙ 416 LEDs ∙ 24W

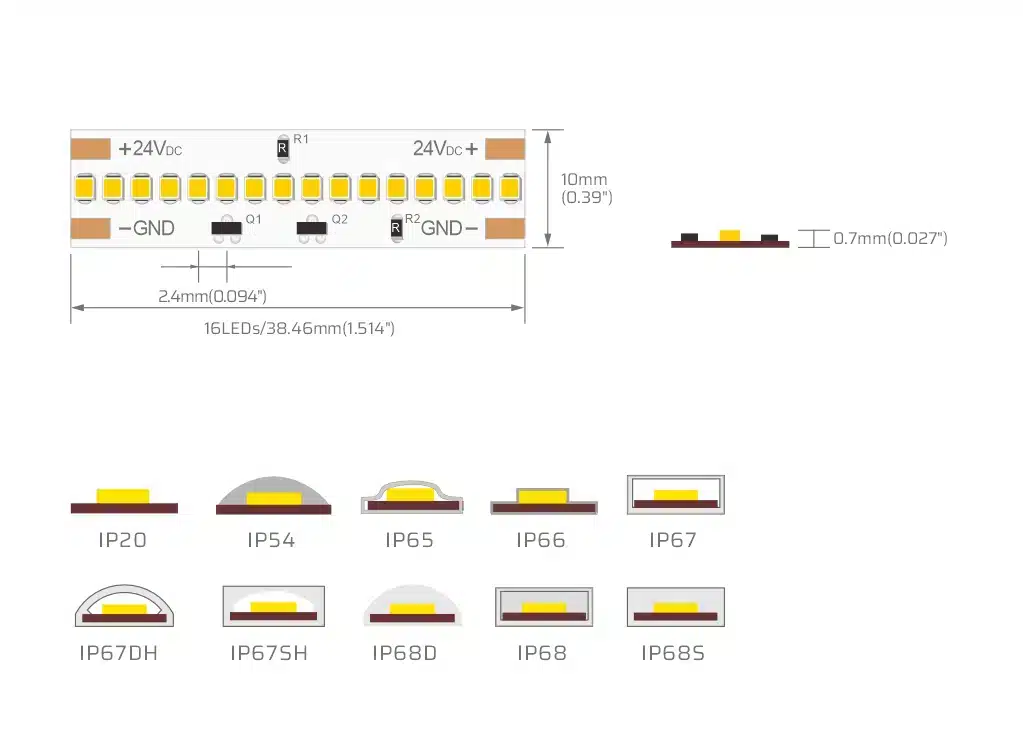

Ultra- Density CRI>90 SMD2220 LED Strips is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 2oz that ensure lower voltage drop and excellent heat dissipation. SMD2216 LED with broader luminous surface ∙ Self-encapsulated design offers optional 1800K ~ 10000K ∙ White lights and R/G/B/Y and others colourful lights for option ∙ High quality PCS, Hight thermal 3M adhesive ∙ Provide 1BIN delivery Dimension ( mm ) : 5000 * 10 * 0.7 Voltage : DC 24V Wattage : 24 W/meter Chip Density : 416 LEDs/ meter , 2.4 mm Step LEDs : 16 LEDs Step Length : 38.46 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 2656 lm/m @ 6500K Lumen / Watt ( max. ) : 166 lm/W @ 6500K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 2 oz Pure Gold wire : 99.99% SDCM : ≤ 3 Step 1Bin PCB Width : ≥ 12mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
