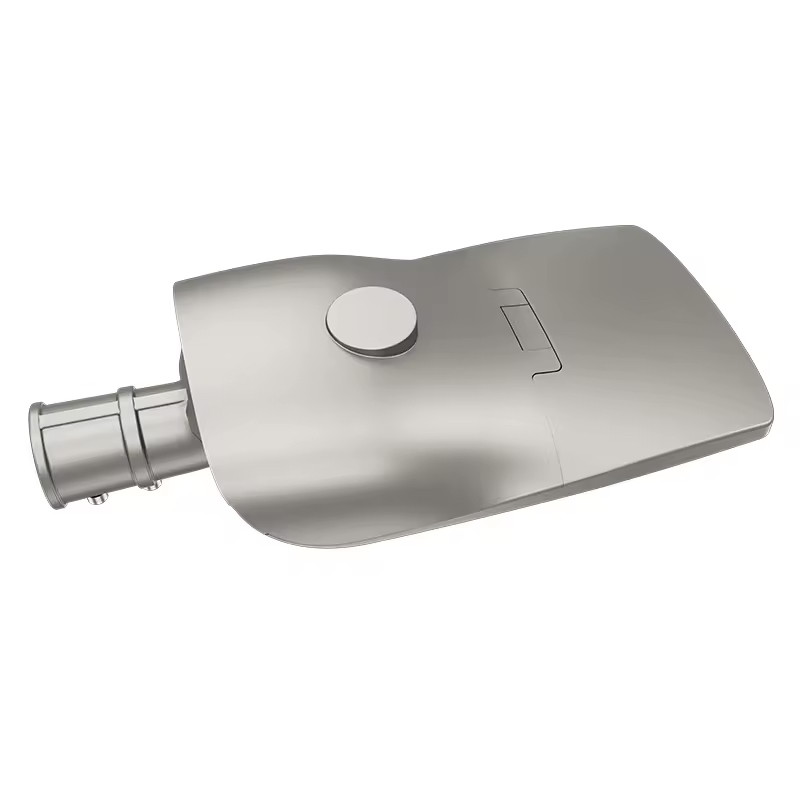

Smart LED Street Light

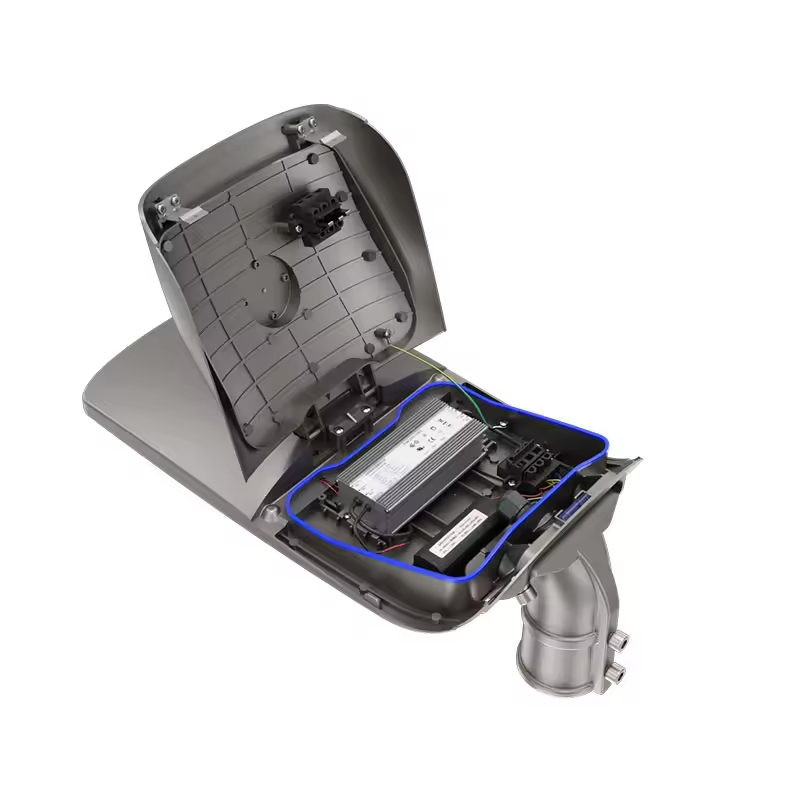

Smart Street Light can be equipped with 0-10V, 1-10V, DALI, DALI2 D4i LED driver, perfect work with 3PIN, 5PIN or 7PIN NEMA socket and ZHAGA socket to fit the ZIGBEE, LORA, Motion/PIR or Casambi nodes to achieve remote smart control by software or App in future. A Cut-off Knife switch can be added inside the power box. The lamp automatically cut off the power once rear cover opened which greatly increases the safety of the lamp. Light Source : Philips Lumiled Efficiency : 145 lm/W ~ 170 lm/W Colour Temperature : 3000K / 4000K / 5000K / 5700K Colour Rendering Index : Ra>70 / Ra>80 LED Driver : Inventronic / MeanWell Power Factor : 0.95 Built-in 10KV surge protector, 20KV on request Operating Temperature : -40°C ~ 50°C Protection Rate : IP66 , IK10 Customisation available
SMD5050 - Efficiency : 160 lumen/W , 4680 lumen
Dimension : L544 * W264 * H132 (mm)
SMD5050 - Efficiency : 165 lumen/W , 8250 lumen
Dimension : L544 * W264 * H132 (mm)
SMD5050 - Efficiency : 165 lumen/W , 9900 lumen
Dimension : L544 * W264 * H132 (mm)
SDM5050 - Efficiency : 160 lumen/W , 12800 lumen
Dimension : L609 * W264 *H132 (mm)
SDM5050 - Efficiency : 165 lumen/W , 16500 lumen
Dimension : L675 * W317 *H132 (mm)
SMD5050 - Efficiency : 165 lumen/W , 19800 lumen
Dimension : L675 * W317 * H132 9mm)
SMD5050 - Efficiency : 165 lumen/W , 24750 lumen
Dimension : L727 * W317 * H132 (mm)
SMD5050 - Efficiency : 155 lumen/W , 27900 lumen
Dimension : L727 * W317 * H132 (mm)
SMD5050 - Efficiency : 160 lumen/W , 32000 lumen
Dimension : L727 * W317 * H132 (mm)
