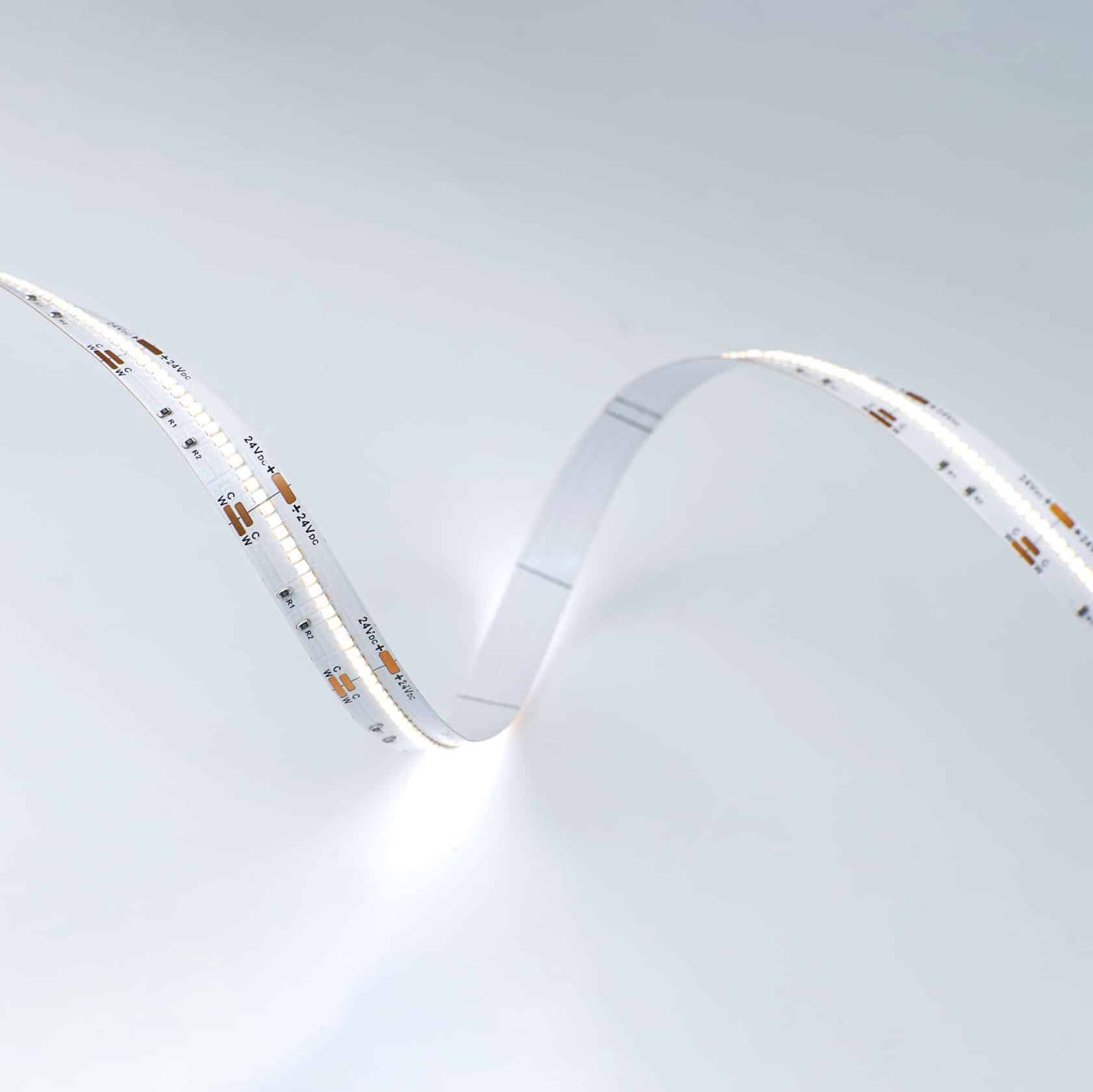

CCT ∙ SMD1515 ∙ 15W

Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. ∙ SMD1515 LED with broader luminous surface ∙ Adjustable colour temperature 2700K ~ 6500K with smooth transitions ∙ High density on PCB, no lighting spot ∙ Supports multiple dimming modes: 0-10V, DALI, PWM. ∙ High-quality PCB board ensures stability and reliability over prolonged use. Dimension ( mm ) : 5000 * 10 * 0.9 Voltage : DC 24V Wattage : 15 W/meter Chip Density : 544 LEDs/ meter , 1.839 mm Step LEDs : 16 LEDs Step Length : 29.412 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 2115 lm/m @ 4000K Lumen / Watt ( max. ) : 140 lm/W @ 4000K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% SDCM : ≤3 Step 1Bin PCB Width : ≥ 10mm Beam Angle : 120° IP Rating : IP20 / IP65 / IP66 / IP67 / IP68 Lifespan : 50,000 hours Customisation available
