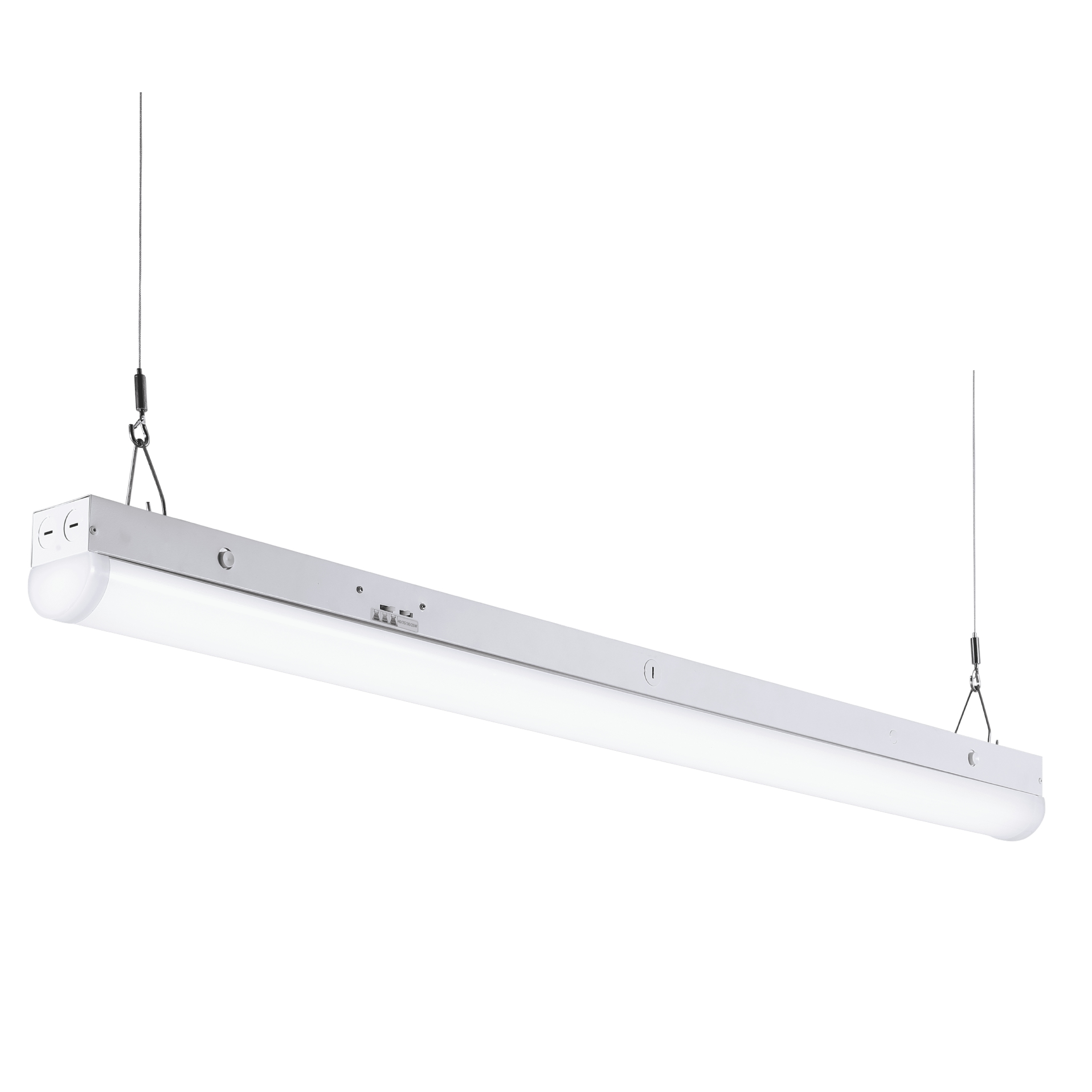

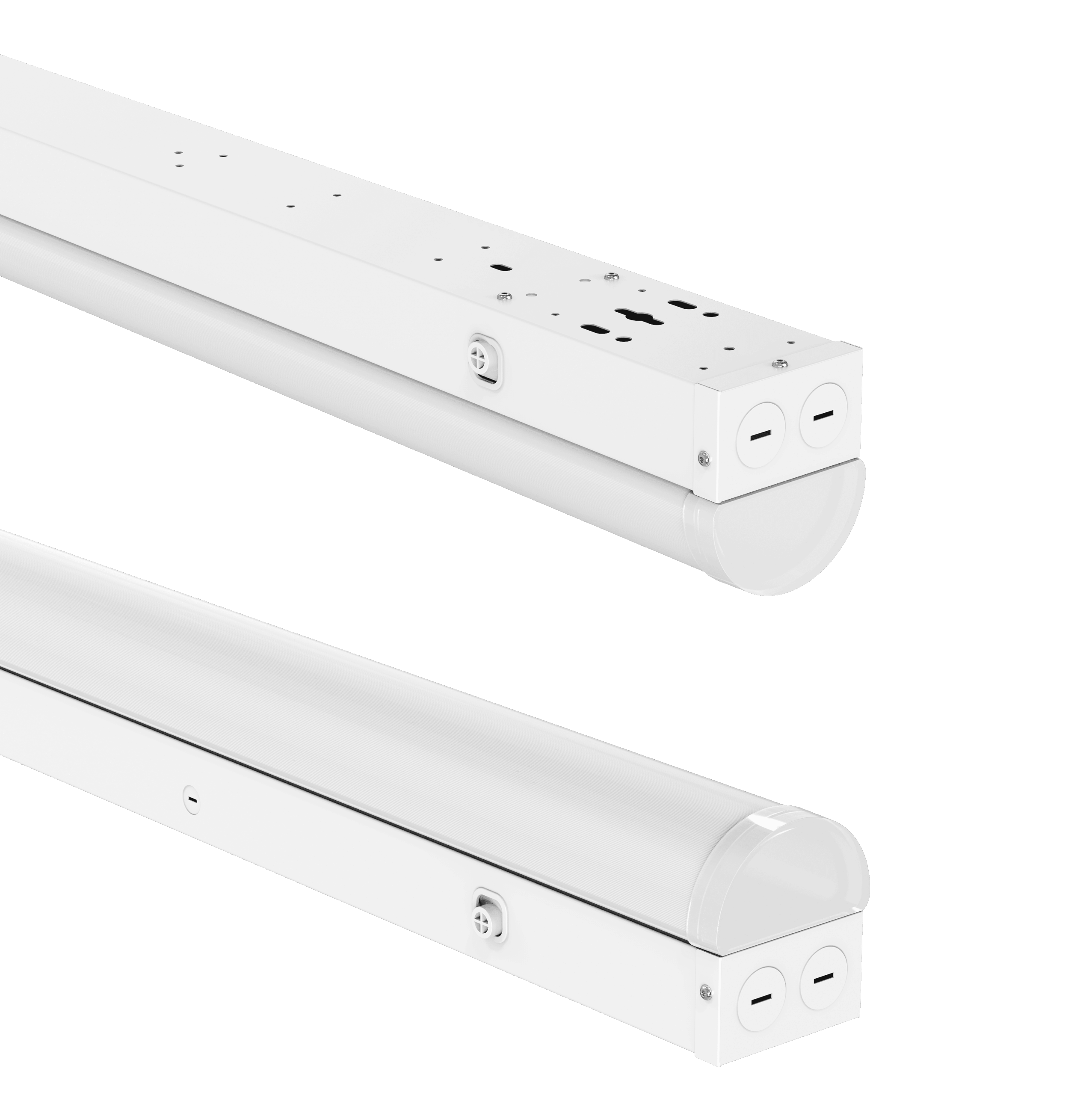

Batten ∙ ECSTR Series

The ECSTR-Series led linear strip fixture is designed with a polycarbonate diffuser than provides impact resistance and even, low glare light. Combine this with powerful, high output LED chips, these fixtures meet today's stringent efficacy standards and bring your projects maximum energy savings. Available in 600mm, 1200mm or 2400mm lengths, they are the ideal fixture of choice for applications such as stairwells, common areas in retail and offices, and utility rooms. 3000K / 4000K / 6000K adjustable. 50W / 60W / 70W / 80W / 90W adjustable Light Source : SMD3528 Luminous Efficiency : 130 lm/W Colour Rendering Index : CRI > 80 Beam Angle : 120° Power Factor : 0.95 Lifespan : 50,000 hours Ingress Protection : IP20 Impact Resistance : IK08 Body Material : Polycarbonate + SPCC Steel Installation : Surface Mounted / Suspension Dimension (mm) : W75 * H83 * L 600 / 1200 / 2400 Customisation available
