3D Bend ∙ 3D2323 LENS

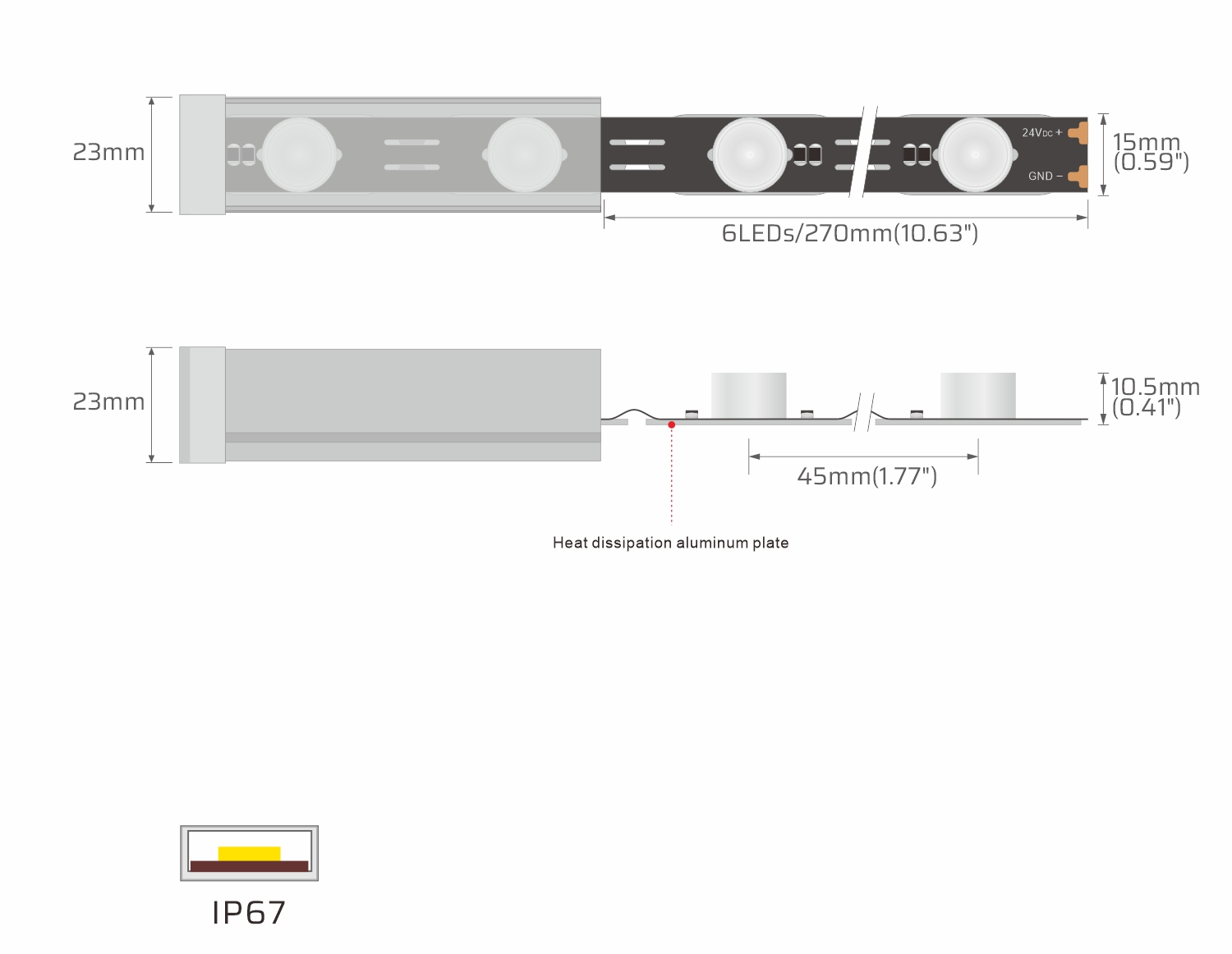

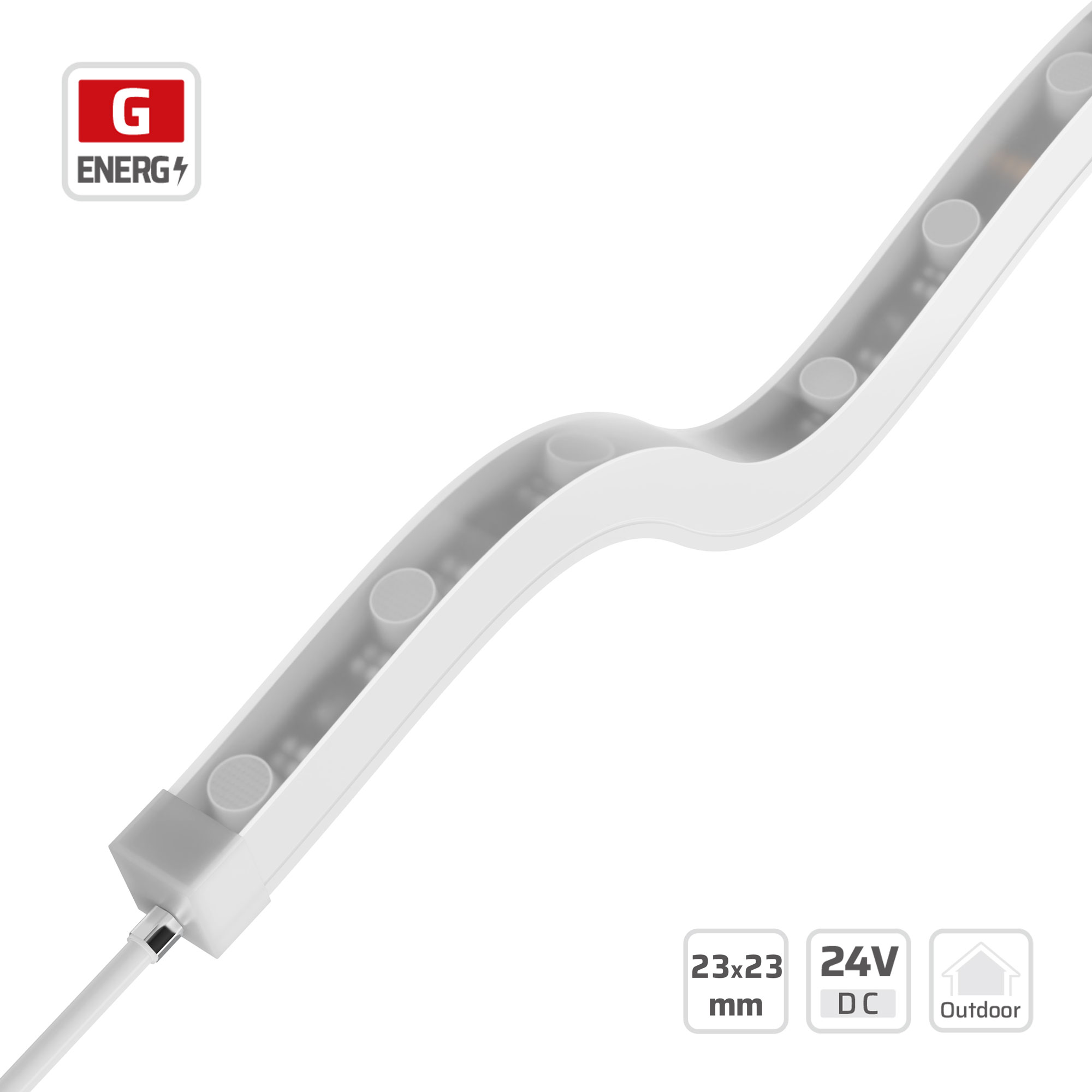

3D flexible design with comfortable dimension 23*23mm, allowing easy concealment. Constant current design ensures uniform illumination and consistent brightness. Max continuous length reach 8000mm, significantly reducing the wiring. Multiple lens angle options to suit various scenarios. Features integrated silicone encapsulation and precision lenses, enhancing durability and optical efficiency. Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, etc. Dimension ( mm ) : 5010 * 23 * 23 Light Source : SMD 2835 Voltage : DC 24V Wattage : 21 W/meter Chip Density : 24 LEDs/ meter , 45 mm Step LEDs : 6 LEDs Step Length : 270 mm Min. Bend : Φ 60mm Colour Rendering Index : Ra 90 Lumen / meter ( max.) : 1770 lm/m @ 4000K , 21W Lumen / Watt ( max. ) : 84 lm/W @ 4000K , 21W Copper Foil : 3 oz Pure Gold wire : 99.99% PCB Width : ≥ 15mm Beam Angle : 30° / 40° / 35° * 45° IP Rating : IP67 Lifespan : 50,000 hours Customisation available
