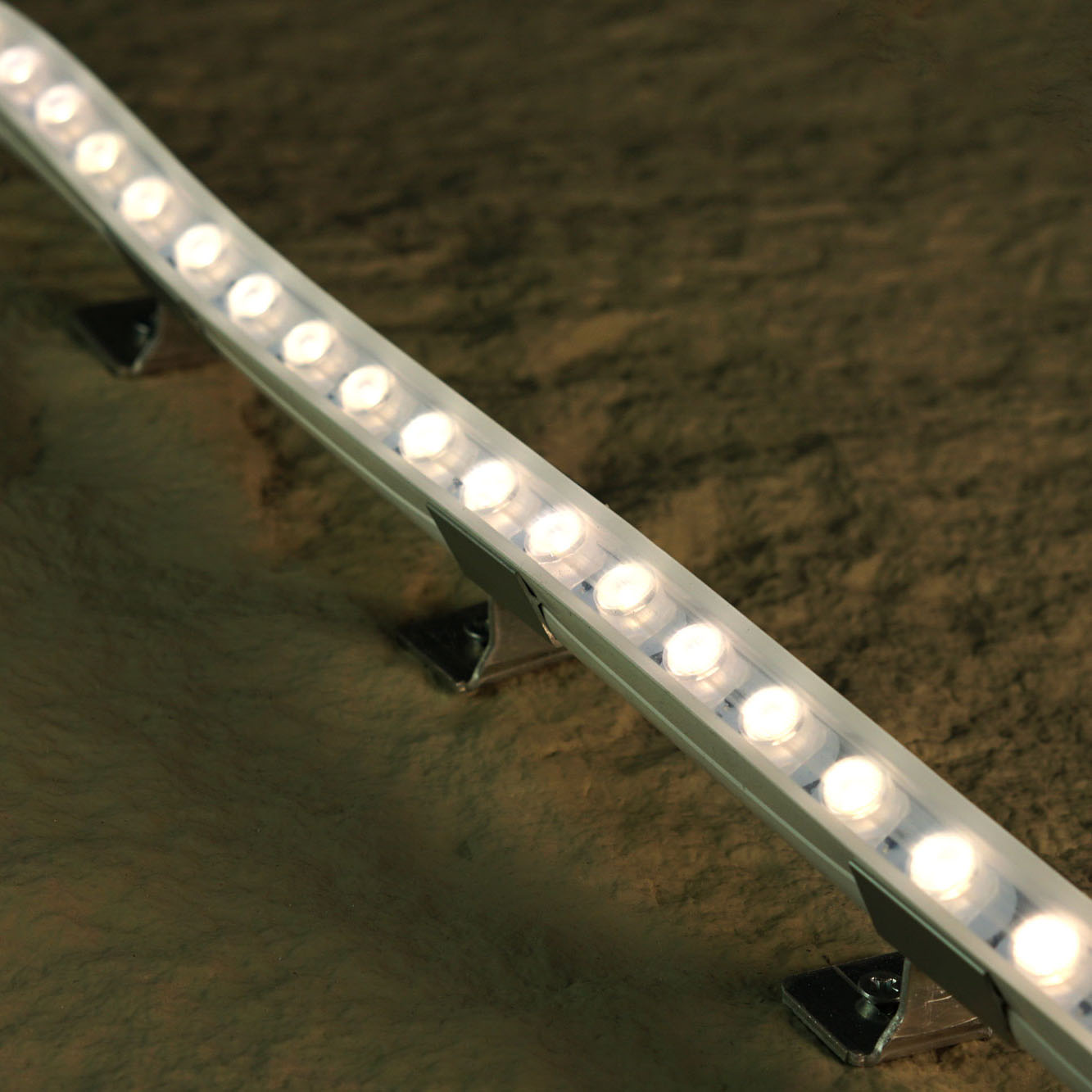

3D Bend ∙ 3D1616 LENS

3D flexible design with comfortable dimension 16x16mm, allowing easy concealment. Max continuous length reach 10M, significantly reduce the wiring. Proprietary optics deliver superior wall-washing performance, ensuring uniform illumination. Highly flexible and versatile, perfect for recessed installations and adapting to complex architectural contours. Features integrated silicone encapsulation and precision lenses, enhancing durability and optical efficiency. Customizable to meet diverse architectural lighting requirements, offering bespoke solutions for unconventional structures. Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks. Dimension ( mm ) : 5010 * 16 * 16 Light Source : SMD 2835 Voltage : DC 24V Wattage : 22 W/meter Chip Density : 48 LEDs/ meter , 20.8 mm Step LEDs : 2 LEDs Step Length : 41.6 mm Min. Bend : Φ 60mm Lumen / meter ( max.) : 1798 lm/m @ 4000K Lumen / Watt ( max. ) : 82 lm/W @ 4000K Colour Rendering Index : Ra ≥80 , Ra ≥90 , Ra ≥95 Copper Foil : 3 oz Pure Gold wire : 99.99% PCB Width : ≥ 12mm Beam Angle : 35° / 40° * 60° IP Rating : IP67 Lifespan : 50,000 hours Customisation available
